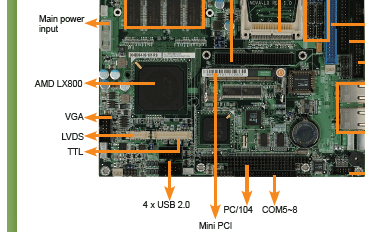

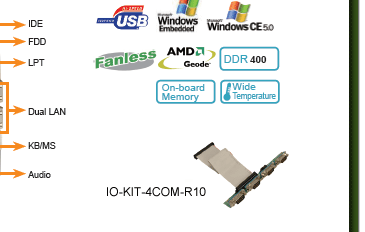

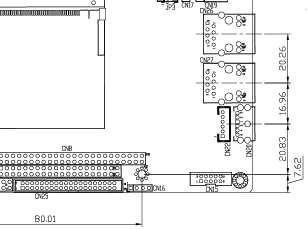

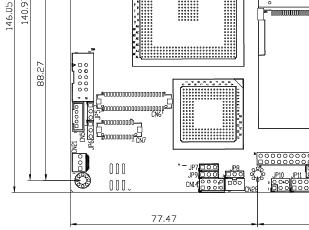

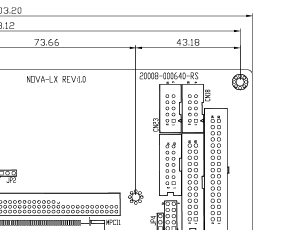

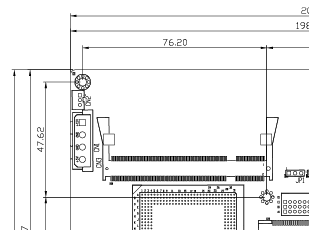

 Dimensions
|
|
Specifications |
| CPU |
On board AMD® Geode™ LX800(500MHz) Processor |
| System Chipsets |
AMD® Geode™ CS5536 I/O companion |
| BIOS |
AMI BIOS |
| System Memory |
On-board 256 MB DDR SDRAM Supported, optional 512 MB |
| Ethernet |
10/100Mbps dual Realtek RTL8100C Ethernet chipsets |
| I/O Interface |
6 x RS-232 (COM1 and COM2, DB9 pin-9 Voltage +5V, +12V jumper selection) |
| 2 x RS-232/422/485 (COM3, COM4) |
| 4 x USB 2.0 |
| 1 x IDE |
| 1 x LPT |
| 1 x FDD |
| 1 x PS2 KB/MS |
| Expansion |
1 x PC/104+ (ISA+PCI Bus) |
| 1 x Mini PCI |
| Digital I/O |
8-bit digital I/O, 4 input/ 4 output |
| Infrared Interface |
N/A |
| Super I/O |
W83627EHG |
| Display Interface |
VGA integrated in AMD® LX800 |
| 24-bit TTL |
| 18-bit single channel LVDS |
| Audio |
AC`97 codec with Realtek ALC203 |
| SSD |
CF type I/II |
| Watchdog Timer |
Software programmable supports 1 ~255 sec. system reset |
| Power Supply |
5V only, 12V for LCD&COM1/2, AT/ATX support |
| Power consumption |
5V@1.66A (AMD® LX800 500MHz CPU with 256 MB on board memory) |
| Temperature :Operating |
NOVA-LX-800W: -20°C ~ +80°C |
| NOVA-LX-800: 0°C ~ +60°C |
| Humidity :Operating |
5% ~95% non-condensing |
| Dimension |
203 mm x 146 mm |
| Weight |
GW: 700 g / NW: 260 g |
Packing and Ordering Information |
| Packing List |
| 1 x NOVA-LX single board computer |
| 1 x mini jumper pack |
| 1 x IDE flat cable (P/N: 32200-000052-RS) |
| 1 x VGA cable (P/N: 32000-033800-RS) |
| 1 x KB/MS Y cable (P/N: 32000-000138-RS) |
| 1 x audio cable (P/N: 32000-072100-RS) |
| 1 x 4 RS-232 adapter cable (P/N: 32200-025401-RS) |
| 2 x USB cable (P/N: 32000-044300-RS) |
| 2 x single RS-232 cable (P/N: 32200-000015-RS) |
| 1 x Utility CD |
| 1 x QIG |
|
| |
| Ordering Information |
| Part No. |
Description |
| NOVA-LX-800W-R10 |
5.25" SBC, AMD® Geode™ LX800 CPU, VGA/LVDS/TTL, Dual LAN, USB 2.0, Audio, on-board 256 MB memory and wide operating temperature ( -20ºC~+80ºC ) |
| NOVA-LX-800-R10 |
5.25" SBC, AMD Geode™ LX800 CPU, VGA/LVDS/TTL, Dual LAN, USB 2.0, Audio, on-board 256 MB memory |
| NOVA-LX-CE060 |
Windows® CE 6.0 Image & BSP S/W CD, Licensed Sticker (w/o CPU board) |
| NOVA-LX-CE050 |
Windows® CE 5.0 Image & BSP S/W CD, Licensed Sticker (w/o CPU board) |
| NOVA-LX-XPE |
Windows® XP Embedded Image & SLD S/W CD, Licensed Sticker (w/o CPU Board) |
| 32200-000017-RS |
FDD Cable |
| 19800-000049-RS |
LPT Cable |
| 32200-000063-RS |
RS-232/422/485 Cable |
| IO-KIT-4COM-R10 |
4 COM Ports Adapter Board |
|
|
 |
|
