 Specifications
|
| Model Name |
NOVA-9152-R10 NOVA-9152LVDS2-R10
|
NOVA-9102-1GZ-R10 NOVA-9102-1G512-R10 |
| CPU |
Socket 479 support |
On-board Intel® Celeron® M 1GHz / Zero Cache CPU |
| support Support Pentuim® M 533/400MHz FSB / Celeron M |
| 400MHz FSB (Dothan & Banias) |
On-board Intel® Celeron® M 1GHz / 512KB Cache CPU |
| NB |
Intel 915GME/ICH6M |
Intel 910GMLE/ICH6M |
| Display |

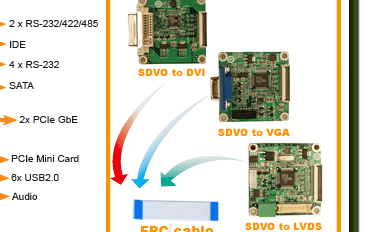

Analog CRT/2x 48-bit LVDS/SDVO Port |
Analog CRT/48-bit LVDS/SDVO port |
Memory
|
2x DDRII 400/533 SODIMM socket support up to 2GB |
2x DDRII 400 SODIMM socket support up to 2GB |
| BIOS |
AMI BIOS Label |
AMI BIOS Label |
| SSD |

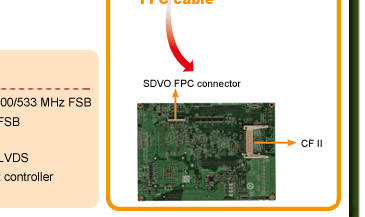

CFII |
CFII |
| Audio |
AC'97 (Realtek AL655) by Audio Kit |
AC'97 (Realtek AL655) by Audio Kit |
| LAN |
Dual PCIe x1 GbE Realtek RTL8111CP |
Dual PCIe x1 GbE Realtek RTL8111CP |
| COM |
4x RS232, 2x RS232/422/485 |
4x RS232, 2x RS232/422/485 |
| USB2.0 |
6x USB 2.0 |
6x USB 2.0 |
| IDE |
1x IDE |
1x IDE |
| LPT |
1x LPT |
1x LPT |
| SATA |
2x SATA |
2x SATA |
| KB/MS |
PSII tpye(1x6 Pin header) |
PSII tpye(1x6 Pin header) |
| WDT |
By supper I/O |
By supper I/O |
| Extension |
1x PCI , 1x PCI-104, 1xPC/104, 1x PCIe express mini card |
1x PCI , 1x PCI-104, 1xPC/104, 1x PCIexpress mini card |
| IrDA |
By super I/O |
By super I/O |
| Digital I/O |
24-bit support 12 input/12 output |
24-bit support 12 input/12 output |
| Power |
5V/12V,AT/ATX Power support |
5V/12V,AT/ATX Power support |
Packing and Ordering Information |
| Packing List |
| 1x NOVA-9152/9102 SBC |
| 1x Mini Jumper Pack |
| 1x ATA 66 Flat cable (P/N:32200-000052-RS) |
| 2x SATA cable (P/N:32000-062800-RS) |
| 1x SATA Power cable (P/N:32100-088600-RS) |
| 1x VGA Cable (P/N:32000-033800-RS) |
| 1x KB/MS Y cable (P/N: 32000-023800-RS) |
| 1x 4 ports RS232 adapter cable (P/N: 32100-147900-RS) |
| 1x USB cable (P/N:32000-044300-RS) |
| 1x Utility CD |
| 1x QIG |
|
| |
| Ordering Information |
| Part No. |
Description |
| NOVA-9152-R10 |
5.25” SBC, Intel Pentium M/Celeron M CPU with VGA/LVDS, Dual PCIe GbE, USB2.0, SATA and Audio |
| NOVA-9152LVDS2-R10 |
5.25” SBC, Intel Pentium M/Celeron M CPU with VGA/LVDS x2, Dual PCIe GbE, USB2.0, SATA and Audio |
| NOVA-9102-1GZ-R10 |
5.25” SBC, Intel Celeron M 1GHz zero cache CPU with VGA/LVDS x2, Dual PCIe GbE, USB2.0, SATA and Audio |
| NOVA-9102-1G512-R10 |
5.25” SBC, Intel Celeron M 1GHz 512KB cache CPU with VGA/LVDS, Dual PCIe GbE, USB2.0, SATA and Audio |
| IO-KIT-4COM-R10: 4COM Ports Adapter Board |
| CF-479B-RS: Mobile socket 479 CPU Cooler |
| 32200-015100-RS: LPT cable |
| 32100-052100-RS: ATX power cable |
| 32200-026500-RS: RS-232/422/485 cable |
| AC-KIT08R-R10: 5.1 Channel AC’97 audio kit with Realtek ALC655 |
|
