ACT-08A-ATOM eDM

ACT-08A
All-in-One Access Control Terminal	Complete Solutions for You	Expand the Opportunities with RFID
Multi-Device Application Possibilities	Parking Lot Entrance Control	Access Control Door System
Healthcare Solutions	Specifications	Ordering informations
Options	Dimensions	Datasheet

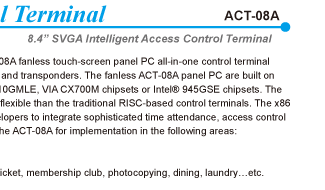

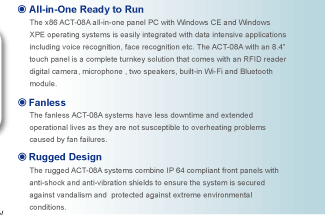

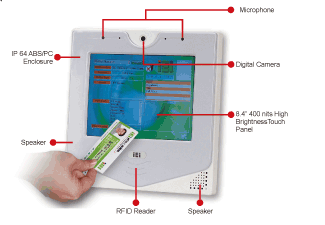

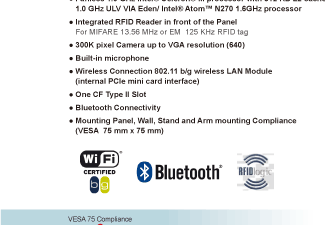

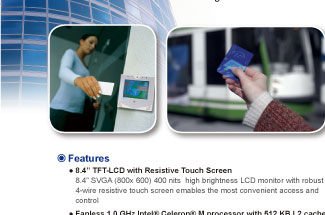

All-in-One Access Control Terminal

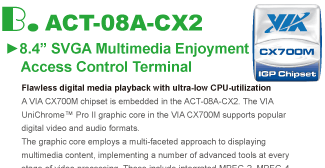

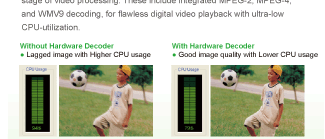

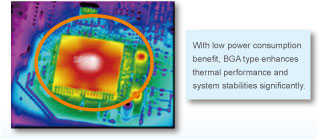

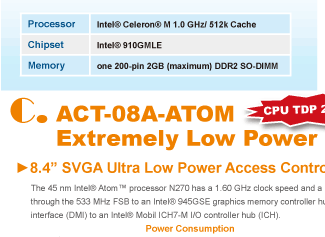

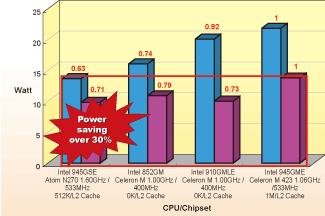

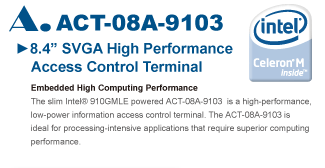

Complete Solutions for You

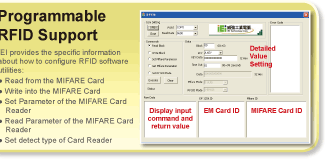

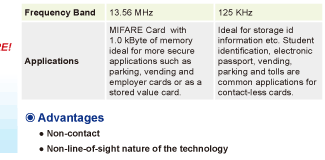

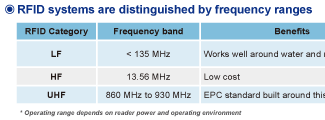

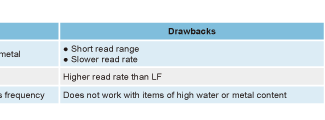

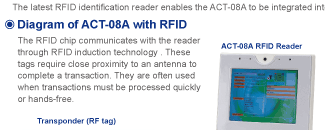

Expand the Opportunities with RFID

Multi-Device Application Possibilities

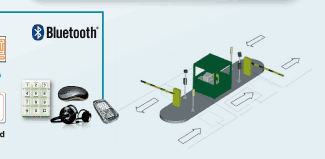

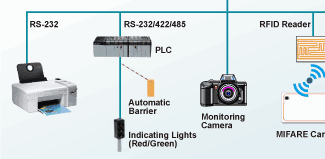

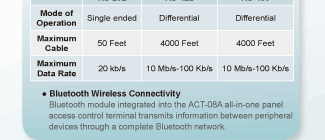

Parking Lot Entrance Control

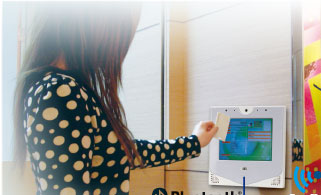

Access Control Door System

Healthcare Solutions

Specifications

Model	ACT-08A-9103	ACT-08A-CX2	ACT-08A-ATOM
LCD Size	8.4"
Max Resolution	800 x 600
Brightness (cd/m²)	400
Contrast Ratio	500:01:00
LCD Color	262K
Pixel Pitch (mm)	0.213(H) x 0.213(V)
Viewing Angle (H-V)	120/100
Backlight MTBF	50000hrs
SBC Model	AFLMB-9103-R10	AFLMB-CX2-R10	AFLMB-ATOM-R10

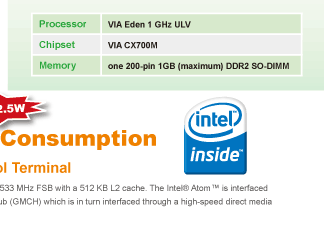

CPU	Intel® Celeron® M processor (1.0GHz) with 512KBL2 Cache	VIA EDEN 1GHz ULV	Intel® Atom N270 (1.6GHz)

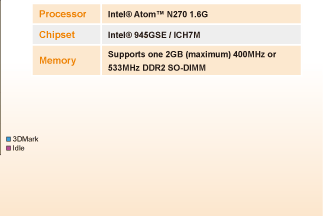

Chipset	Intel® 910GMLE	CX700M	Intel® 945GSE + ICH7M
RAM	One DDRII SO-DIMM Up to 2GB	One DDR II SO-DIMM up to 1GB	One DDRII SO-DIMM Up to 2GB

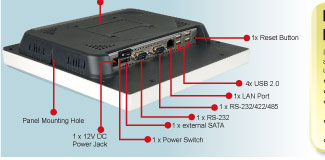

I/O Ports	1 x RS232 COM Port 1 x RS232 or 422/485 COM Port 1 x Giga LAN 4 x USB 2.0 1 x external SATA 1 x Power Switch 1 x Reset Button 1 x Power Jack		1 x RS232 COM Port 1 x RS232 or 422/485 COM Port 2 x Giga LAN 2 x USB 2.0 1 x Power Switch 1 x Reset Button 1 x Power Jack
SSD	CF Type II
Audio	AMP 1.5W + AMP 1.5W (Internal speaker)
Extension	1 x Wireless Lan Module (802.11 b/g) (internal PCIe mini card interface) 1 x Bluetooth Function (internal USB interface)	1 x Wireless Lan Module (802.11 b / g) (internal Mini PCI interface) 1 x Bluetooth Function (internal USB interface)	1 x Wireless Lan Module (802.11 b/g) (internal PCIe mini card interface) 1 x Bluetooth Function (internal USB interface)
HDD Drive Bay	N/A
CD-ROM Drive Bay	N/A
Camera	300K pixel Camera + Digital Microphone (USB interface)

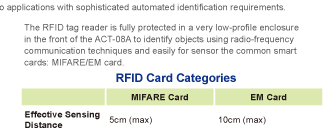

RFID	MIFARE (13.56MHz) & EM (125KHz) RFID Reader
Construction Front Panel	ABS + PC Plastic front frame
Contruction Chassis	Aluminum Chassis
Power Adapter	60W Power Adapter	48W Power Adapter	48W Power Adapter
LED Function	1 x LED on Front Panel for Power ON/OFF
Mounting	Panel, Wall, Stand and Arm mounting (VESA 75 x 75mm)
Color	Blue and White
Dimension (WxHxD) (mm)	251.72 mm x 244.69 mm x 53.3 mm
Operation Temperature (ºC)	0ºC ~ 45ºC	0ºC ~ 45ºC	-10ºC ~ 50ºC
N/G Weight	1.1 kg
IP Level	IP64
Safety & EMI	CE / FCC / CB / CCC
Power Consumption	48W	38W	35W

Ordering informations

Part No.	Description
ACT-08A-ATOM-N270/WT-R/1GB-R10	8.4" 400cd/m² SVGA fanless panel PC with INTEL ATOM N270 1.6GHz CPU, 1GB DDR2 RAM, 802.11 b/g wireless module, MIFARE & EM RFID module, touch screen, bluetooth, RoHS
ACT-08A-CX2-E10G/WT-R/512MB	8.4" 400cd/m² SVGA fanless panel PC with VIA Eden 1GHz ULV CPU, 512MB DDR2 RAM, 802.11 b/g wireless module, MIFARE & EM RFID module, touch screen, bluetooth, RoHS
ACT-08A-9103-10G/WT-R/1GB	8.4" 400cd/m² SVGA fanless panel PC with Celeron M 1GHz 512KB cache CPU, 1GB DDR2 RAM, 802.11 b/g wireless module, MIFARE & EM RFID module, touch screen, bluetooth, RoHS

Options

		ACT-08A-CX2	ACT-08A-9103	ACT-08A-ATOM
Panel Mounting Kit		AFLPK-08
Wall Mounting Kit		AFLWK-12
ARM		ARM-11-RS / ARM-31-RS
STAND		STAND-08B / STAND-100-RS / STAND-150-RS
OS	Win XPE	ACTCF-08-CX2-XPE	ACTCF-08-9103-XPE	ACTCF-08-ATOM-XPE

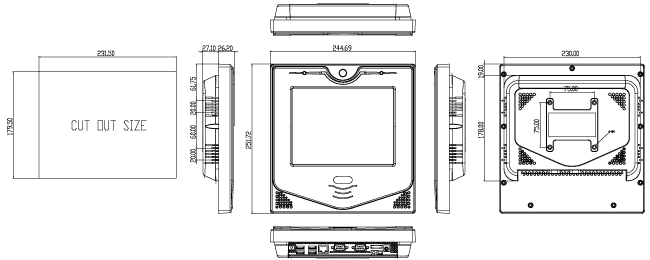

Dimensions
